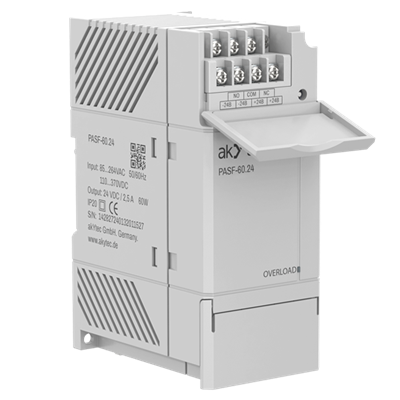

PASF 60.24 DIN Rail Power Supply

Description

Buy PASF-60.24 DIN Rail Power Supply To Simplify Panel Wiring & Monitoring

Paklink LLC stocks the AKYTEC PASF-60.24 DIN rail power supply in Dubai, with delivery across the UAE and the wider Gulf. Its slim housing saves rail space in the cabinet, so you can fit more equipment into the same panel. The adjustable voltage trimmer helps you fine-tune power for delicate sensors and controllers, and the built-in relay gives a simple on/off or fault signal to your control system, so you always know the supply status at a glance.

You can place identical units side by side and wire them in parallel when you need more current, without adding extra protection hardware. Installers appreciate the clear terminal labels and compact size, and engineers commonly use it to feed PLCs, sensors, relay coils, small drives, and other 24 V control gear.

We keep the focus on clean, stable power so your machines and control electronics run without drops or surprises — backed by AKYTEC’s 2-year warranty and rated for a 10-year service lifetime.

Order the PASF-60.24 in Dubai — Specifications and Related Types

We keep ordering simple so your purchasing team can confirm the right unit for the project. On the output side, the PASF-60.24 delivers 24 V DC at 2.5 A (60 W rated), adjustable by ±8%, with ripple voltage kept under 120 mV. On the input side it accepts a wide 85–264 V AC range at 45–65 Hz, with efficiency rated at a minimum of 85% at full load — so it performs reliably even where mains voltage fluctuates. The unit carries an IP20 rating, runs in ambient temperatures from −40°C to +70°C, and weighs under 0.5 kg.

Choose the PASF-60.24 when you need compact 24 V power with built-in fault monitoring. If your panel needs more current, add identical units and wire them in parallel — no extra balancing hardware required. For simpler DC distribution without the relay output, the PASB series is also available in 15 W, 30 W, and 60 W variants. Contact our sales team and we’ll help confirm the right model, pricing, and delivery timeline.

PASF-60.24 Features

• Output: 24 V DC, 60 W (2.5 A), adjustable ±8%
• Wide input tolerance: 85–264 V AC, 45–65 Hz
• Efficiency: min. 85% at rated load
• Integrated relay for fault/status monitoring (feeds directly into your PLC)
• Extremely slim, space-saving design for compact control cabinets
• Parallel and serial connection with automatic current balancing
• Full protection suite: overvoltage, overcurrent, overload, short-circuit, overheat
• IP20 rated, reinforced insulation, −40°C to +70°C operating range
• 2-year warranty, 10-year average service lifetime

PASB-15/30/60.24 Features

• Output options: 24 V DC in 15 W, 30 W, or 60 W variants
• Stable DC supply for relays, automation systems, and controllers
• Plastic enclosure optimized for DIN-rail mounting
• Built for distributed power systems of varying complexity
• Parallelable — combine same-type units to raise total power

In Which Industries Can I Use the PASF-60.24 DIN Rail Power Supply?

The PASF-60.24 fits a wide range of industrial sectors that need reliable 24 V control power. Its narrow footprint helps in crowded panels, while the adjustment and relay features help engineers tune and monitor systems in real time.

• Machine Building Power
• Industrial Automation Panels
• Building Automation Systems
• Packaging Lines and Conveyors
• Test and Measurement Benches
• OEM Control Enclosures
• Transportation and Rail Equipment
• HVAC and Energy Management
• Security and Access Control
• Robotics and Motion Control
• Laboratory and R&D Setups

Save Space While Keeping Devices Powered

Order the PASF-60.24 DIN rail power supply from Paklink LLC and give your control panel steady, compact 24 V power with built-in fault monitoring. Contact our sales team for price, current stock, and help with parallel wiring so your setup is right the first time.

FAQs

What input and output does the PASF-60.24 use, and how strong is it?

It accepts 85–264 V AC input and delivers 24 V DC output at up to 60 W (2.5 A). You can adjust the output by about ±8% with the front trimmer to match your device needs.

How do I mount the PASF-60.24 on a DIN rail?

• Snap the unit onto a standard 35 mm DIN rail
• Connect the AC live, neutral, and ground
• Wire the DC positive and negative to the marked terminals
• Switch on power and verify the output voltage before connecting your load

Can I wire multiple PASF-60.24 units in parallel?

Yes. Identical units can be wired in parallel to raise total current, with automatic current balancing and no extra protection devices needed.

Does the supply tell my PLC if it fails?

Yes — the built-in relay changes state when the output drops, so you can connect it to your PLC input for a fault or presence signal.

What protections does the PASF-60.24 include?

Output overvoltage and overcurrent protection, input surge/impulse noise protection, and overload, short-circuit, and overheat protection — all built in.

What’s the difference between the PASF-60.24 and the PASB series?

The PASF-60.24 includes a built-in status relay for fault monitoring; the PASB series is a simpler DC supply without the relay, available in 15 W, 30 W, and 60 W variants.

Is the PASF-60.24 in stock in the UAE, and what’s the warranty?

Yes — Paklink LLC stocks it in Dubai with delivery across the UAE, Qatar, Oman, Bahrain, Kuwait, and Saudi Arabia. It carries AKYTEC’s 2-year warranty and a 10-year average service lifetime.
