Description
Janitza UMG 96-PA Expandable Modular Power Analyzer
The Janitza UMG 96-PA is a modular power analyzer for precise measurement of energy values and voltage quality in electrical networks. It records multiple energy measurement values, monitors power quality parameters, and measures energy consumption in real time. The analyzer alerts operators to disturbances before they cause equipment failure or production downtime.
Paklink LLC supplies the Janitza UMG 96-PA in the UAE, across the GCC, and in neighboring markets, with technical support for selection, module configuration, and integration.
What Is the Janitza UMG 96-PA Power Analyzer?
The UMG 96-PA is an expandable power analyzer with a plug & play module concept. You install the base device first and add modules later when your monitoring requirements change. An extension module adds residual current monitoring to the standard energy and voltage quality measurement.

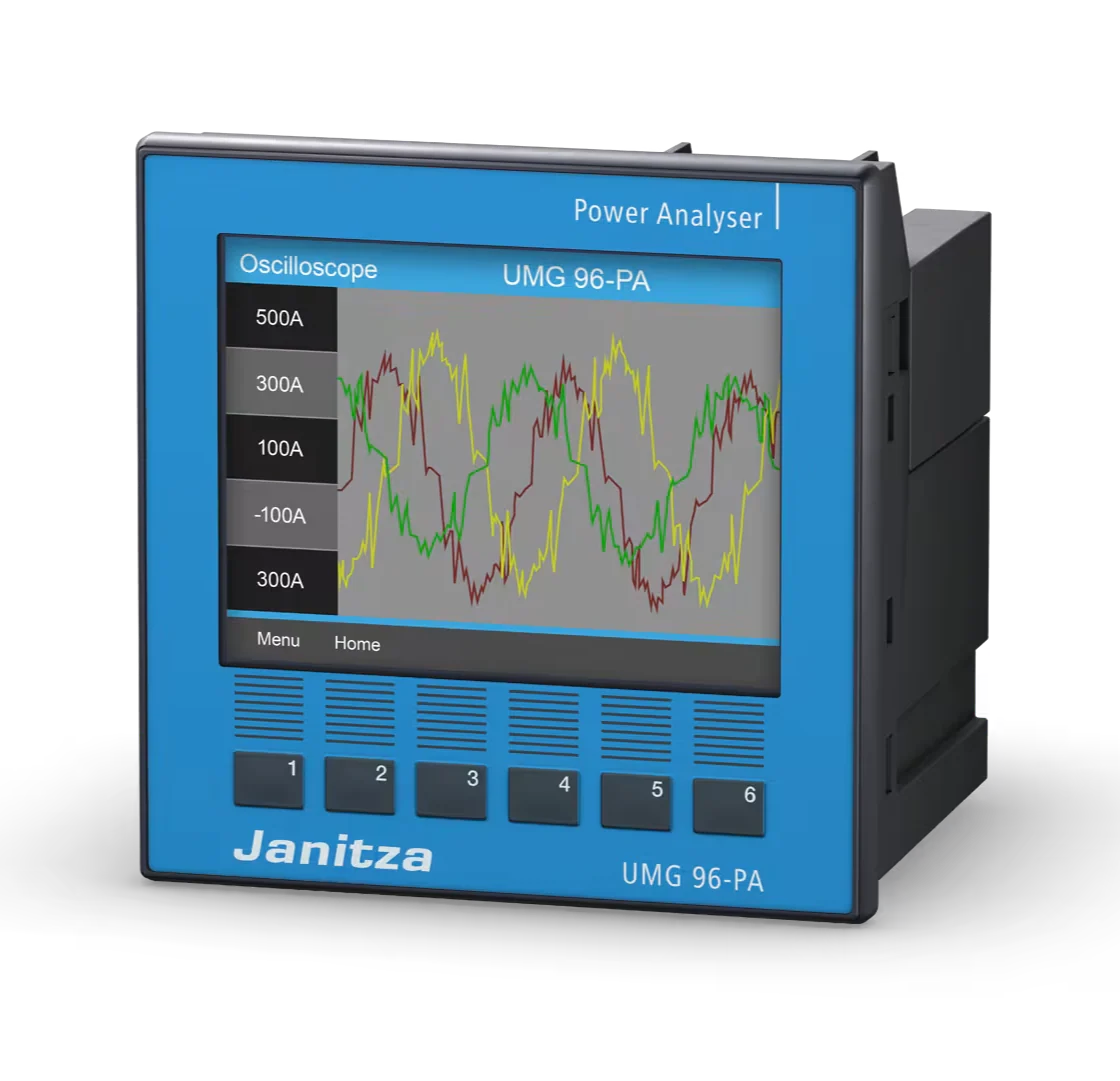

A color graphic display and six-button operation make the device easy to read and configure on site. Its 600 V CAT III dielectric strength supports safe operation in heavy industry as well as in general office and commercial environments.
Janitza UMG 96-PA Technical Features
- Measurement: High measurement accuracy with multiple energy channels
- Data recording: Real-time data logging and power quality recording
- Voltage monitoring: Continuous monitoring of voltage quality
- Residual current monitoring: Available with an extension module
- Modular design: Expandable with plug & play modules
- Safety: 600 V CAT III high dielectric strength and compliance with safety standards
- Display and operation: Color graphic display, six-button operation, intuitive user interface
- Performance: Fast sampling rate and clear data visualization
- Durability: Rugged construction for harsh environments
- Integration: Easy integration with other systems
UMG 96-PA Quick Specifications
| Attribute | Value |
|---|---|
| Device type | Modular power analyzer |
| Brand | Janitza |
| Mounting | Panel mounting, 96 × 96 mm front |
| Panel cut-out | 92 mm × 92 mm |
| Interface | RS485 with Modbus |
| Expansion | Plug & play modules, including residual current monitoring modules |
| Dielectric strength | 600 V CAT III |
| Display | Color graphic display with six-button operation |
| Variants | UMG 96-PA, UMG 96-PA-MID, UMG 96-PA-MID+ |
Installation and Mounting
The UMG 96-PA mounts in a standard 96 × 96 mm panel with a 92 mm × 92 mm cut-out, which makes it easy to install in switchgear doors and control panels. It suits small businesses as well as large industrial plants. The user interface presents measured values in a clear format that supports faster operating decisions.
Communication and System Integration
The UMG 96-PA communicates via an RS485 interface and supports Modbus, so it can send measured values to energy management software, SCADA systems, and building management systems. Paklink LLC supports you with interface selection and integration planning.
UMG 96-PA Variants and Expansion Modules
Janitza offers the UMG 96-PA in several variants. The UMG 96-PA-MID and UMG 96-PA-MID+ are intended for energy metering that must meet MID requirements, for example in billing-relevant applications. Residual current expansion modules extend the base device with residual current monitoring. Contact Paklink LLC to confirm the variant and module availability for your project.
How the UMG 96-PA Supports Power Quality and Energy Management
Energy waste and hidden electrical faults increase operating costs and shorten equipment life. The UMG 96-PA identifies energy waste and potential fault sources by recording consumption and power quality values continuously. Maintenance teams use this data to prevent equipment malfunction and plan repairs before production stops.
As part of a wider energy management strategy, the analyzer helps lower operating costs and improve system reliability. If your measurements show a poor power factor, combine it with reactive power compensation.
Applications of the Janitza UMG 96-PA
- Industrial plants: Monitor motors, machinery, and main distribution boards
- Commercial buildings: Track consumption and voltage quality across systems
- Data centers: Maintain visibility over critical power supply
- Energy management systems: Provide measured values for analysis and reporting
- Renewable energy installations: Monitor energy values in generation systems
- Smart grids: Supply real-time data for network monitoring
- Public infrastructure: Support reliable operation of shared facilities
How to Choose the Right Janitza Power Analyzer
Choose the analyzer by measurement scope and expansion needs.
| Product | Type | Select it when |
|---|---|---|
| Janitza UMG 96-PA | Modular power analyzer | You need plug & play expansion and optional residual current monitoring |
| Janitza UMG 96 RM-E | Multi-functional power analyzer | You need real-time energy monitoring in a compact 96 mm format |
| Janitza UMG 96 RM-CBM | Multi-functional energy analyzer | You need industrial energy monitoring with the RM-CBM feature set |
| Janitza UMG 512-PRO | Power quality analyzer | You need advanced power quality analysis |
Send us your measuring points, network type, and communication requirements, and we will recommend the right device.
Sourcing the UMG 96-PA Regionally
Paklink LLC supplies the Janitza UMG 96-PA modular power analyzer across the UAE, Qatar, Bahrain, Saudi Arabia, Egypt, Kazakhstan, Oman, Russia, Kuwait, Sudan, Iraq, Turkey, and Yemen, with technical support for metering design, module selection, and system integration.
Share your project requirements, such as the number of measuring points and whether you need residual current monitoring, and we will recommend a suitable UMG 96-PA configuration. Request a quote.
