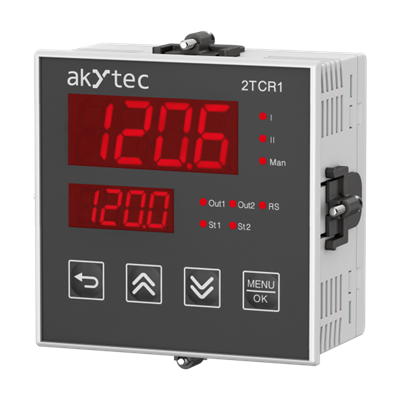

Two Point Temperature Controller 2TCR1

Description

Buy Two-Point Temperature Controller 2TCR1 for Reliable Process Control

Paklink LLC stocks the AKYTEC 2TCR1 in Dubai, with delivery across the UAE and the wider Gulf. The controller gives you two input channels, so you can run two zones independently or combine both sensors for average or difference control — useful for delta-T applications like HVAC coil monitoring or dual-zone processes.

The display and menu system are built for fast setup: your team sets setpoints, alarms, and modes over a USB-C cable, or adds the unit to a Modbus RS-485 network for remote monitoring. Choose from on/off control, three-step control, or proportional P-control depending on your process. Alarm limits flag out-of-range readings, and the controller also monitors for sensor and communication failures so problems get caught before they affect production.

The 2TCR1 accepts a wide range of RTD and thermocouple sensors, along with thermistors and analog 4-20 mA / 0-10 V signals — so it fits most existing sensor setups without needing a signal converter. Relay outputs let you drive heaters, coolers, or valves directly, without extra switching hardware.

Note: the 2TCR1 does not include built-in data logging. If your application needs historical data storage, pair it with the akYtec MSD200 data logger over the RS-485 network.

Order the 2TCR1 in Dubai — Housing Options and Specifications

The 2TCR1 runs on either 230 V AC or nominal 24 V DC power, so it fits most existing panel supplies without extra conversion hardware. It’s IP54 rated in the P1 and P2 housing versions, giving protection against dust and water splashes — a useful margin for wash-down areas or semi-exposed panels. Communication runs over RS-485 using standard Modbus ASCII/RTU, so it integrates cleanly with most existing SCADA and BMS platforms.

Choose from three panel-mount housing sizes to match your standard cutouts: 96 × 96 × 53 mm, 96 × 48 × 100 mm, or 48 × 48 × 103 mm. Each ships with the akYtec Tool Pro configuration software, so your team can program setpoints, alarms, and network settings from day one — no separate purchase needed.

Tell us your housing size, power supply, and sensor type, and we’ll confirm stock and delivery. We provide clear manuals and setup support so your team commissions the 2TCR1 without surprises.

Features

• Two independent input channels for temperature and other process values
• Average and differential logic to combine both inputs for smarter control
• Two-position, three-position, and P-control modes to match different process needs
• Weather-dependent control to react to outdoor conditions
• Supports RTD, thermocouple, thermistor, and 4-20 mA / 0-10 V analog inputs
• RS-485 Modbus ASCII/RTU connectivity for logging and remote control
• USB-C programming for fast local setup
• Relay outputs for direct actuator switching
• Flexible power: 230 V AC or nominal 24 V DC
• IP54-rated enclosure (P1/P2 versions) for dust and splash protection
• Three housing sizes to fit standard panel cutouts (96×96×53, 96×48×100, 48×48×103 mm)
• Alarm and sensor-failure detection to alert staff quickly
• Menu locks and parameter protection to prevent unauthorized changes
• Tool Pro configuration software included

Who Uses the 2TCR1

The 2TCR1 suits any workplace that needs compact, dependable local control with alarms and simple network logging: HVAC installers, food and beverage processors, plastics and rubber manufacturers, small chemical plants, water treatment facilities, refrigeration and cold chain services, research labs, machine builders, packaging lines, greenhouses, and utilities.

• HVAC and Building Automation
• Food and Beverage Processing
• Plastics and Rubber Manufacturing
• Chemical and Pharmaceutical Facilities
• Water and Wastewater Treatment
• Refrigeration and Cold Chain
• Research Laboratories
• OEM Machine Builders
• Packaging and Processing Lines
• Greenhouses and Agritech
• Energy and Utilities

Speed Up Commissioning with USB-C Setup

Order the 2TCR1 from Paklink LLC today and simplify your temperature and process control tasks. Contact our sales team to confirm housing, outputs, power options, and current stock — we support installation and setup so your system runs reliably from day one.

FAQs

What signals and sensors can the 2TCR1 read?

It reads RTD and thermocouple sensors, thermistors, and analog 4-20 mA / 0-10 V signals — so it fits temperature, pressure, humidity, flow, and level applications without needing a separate signal converter.

How many control channels does the unit have?

Two independent channels, which you can run separately for two zones or combine for average or difference control.

Which control modes does it support?

Two-position (on/off) control, three-position control, analog proportional P-control, and weather-dependent control for outdoor-influenced processes.

Does the 2TCR1 store historical data?

No — it doesn’t include built-in data logging. For historical data storage, pair it with the akYtec MSD200 data logger over the RS-485 network.

What happens on sensor failure or communication loss?

The controller raises an alarm, switches outputs to a configured safe mode, and logs the event for review.

What protection rating does the housing have?

The P1 and P2 versions are IP54 rated, protecting against dust and water splashes — suitable for most industrial panel environments.

Is the 2TCR1 in stock in the UAE?

Yes — Paklink LLC stocks the 2TCR1 in Dubai with delivery across the UAE, Qatar, Oman, Bahrain, Kuwait, and Saudi Arabia.
