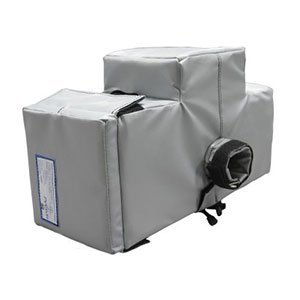

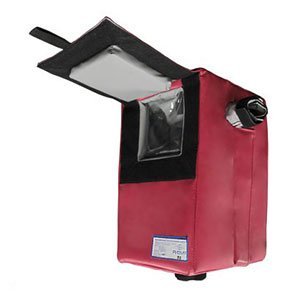

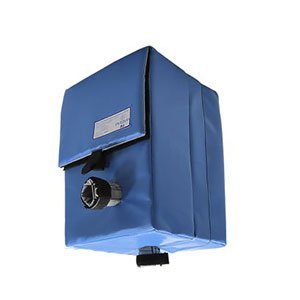

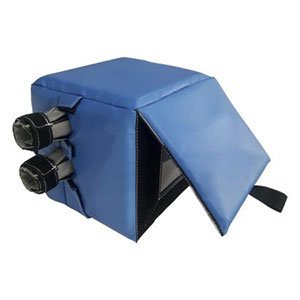

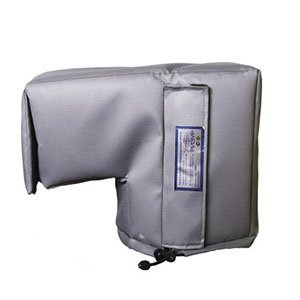

Soft Enclosures RIZUR For EC&I Equipment

Soft Enclosures RIZUR For EC&I Equipment are specially designed to protect EC&I (Electrical, Control, and Instrumentation) equipment in harsh environments. These enclosures protect equipment from rain, snow, wind, sunlight, and corrosive chemicals. They also give uniform temperatures, minimizing heat loss and icing. This allows equipment to perform steadily even under unfavorable conditions.

Enclosures are made of multi-layered flame-retardant, antistatic design. Thermal insulation is also created between the outer and inner layers, and the design can be done as per individual needs. Freeze-proof Velcro is utilized in fasteners with ease of assembly and disassembly without interrupting operations. Cable and tube sleeves are preprovided separately for cover safely.

To achieve the prescribed internal temperature, different heating elements are utilized. These can be self-regulating or resistive heating cables such as RIZUR-ONP, RIZUR-OShA, and RIZUR-TERM. The systems are certified and can be adapted to individual requirements. Design permits equipment to operate at low and high temperatures. They have one of the most significant features of being as quick to install as possible. There is no requirement to de-energize cables or equipment shut down.

Soft Enclosures RIZUR For EC&I Equipment Product Features

• Multi-layer construction with flame-resistant, antistatic materials
• Thermal insulation between inner and outer layers
• Customizable insulation thickness (10 to 100 mm)
• Freeze-resistant Velcro fasteners for easy assembly
• Special sleeves for cable and tubing entry
• Supports various heating elements (self-regulating, resistive)
• Maintains internal temperatures from -40°C to +110°C with thermostat
• Operates in ambient temperatures from -70°C to +70°C
• Ingress protection rating of IP54
• Surface resistivity under 10^9 Ohm (antistatic)
• Thermal conductivity of 0.03 W/m·K
• Power supply ranging from 15 to 500 W
• Easy to install and remove without disconnecting equipment
• Compatible with multiple cable and pipe configurations
• Designed for long service life under extreme conditions

Areas of Applications

• Industrial automation systems
• Oil and gas facilities
• Power generation plants
• Chemical and petrochemical industries
• Water treatment stations
• Mining operations
• Food and beverage processing
• Cold storage and refrigeration units
• Outdoor instrumentation cabinets
• Electrical and control cabinets in harsh climates

Soft Enclosures RIZUR For EC&I Equipment provide protection twenty-four hours a day. They are flexible and can be used in a huge variety of applications, from factory environments to specialist installations.
