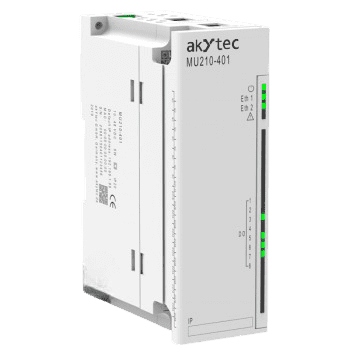

MU210-401 Digital Output Modules

MU210-401 Digital Output Modules

MU210-401 Digital Output Modules is a digital output module, which is used in industrial automation system enhancement of control. It has eight relay outputs, which can handle 5 A each at 250 V AC or 3 A each at 30 V DC. This puts it well in actuator, light, and motor control. The module utilizes Modbus TCP protocol through double Ethernet ports to provide fault-proof and dependable communications in network environments.

The module is rugged in nature and usable from -40 to +55 °C and thus ideal to be used within rugged industrial areas. The size of the module is compact to easily fit the module within the control panels. Daisy-chaining allows easy expansion of the network with zero additional cost of installation. It also provides Ethernet auto-bypass functionality to continue the communication over the network when one module within the chain becomes faulty.

MU210-401 is easy to install using the free akYtec ToolPro software. The module is also equipped with a data logger and an on-chip real-time clock for precise control and monitoring of processes.

MU210-401Digital Output Modules Product Features:

• Eight relay outputs​
• Maximum load per output: 5 A at 250 V AC or 3 A at 30 V DC​
• Dual Ethernet ports supporting Modbus TCP​
• Support for MQTT, SNMP, and SNTP protocols​
• Ethernet auto-bypass functionality​
• Daisy-chain wiring capability​
• Built-in real-time clock
• Data logging support​
• LED indicators for network diagnostics​
• Operating temperature range: -40 to +55 °C​
• Power supply: 24 (10…48) V DC​
• Power consumption: max. 6 W​
• USB 2.0 (MicroUSB) configuration interface​
• IP20-rated enclosure​
• Compact dimensions: 42 x 124 x 83 mm​
• Weight: approximately 400 g​
• Free configuration software: akYtec ToolPro​
• Simultaneous communication with up to four TCP clients​
• Synchronous configuration update for multiple modules​
• DIN rail mounting​

Areas of Applications:

• Industrial automation systems​
• Building management systems
• Process control applications​
• Remote monitoring and control​
• Energy management systems​
• Manufacturing equipment control​
• Environmental monitoring systems​
• Infrastructure automation​

Status over the network through plain LEDs with convenient diagnosis also facilitates immediate debugging and minimum downtime. The robust character and strong performance of the Akytec MU210-401 Digital Output module make it a worthy asset for many commercial and industrial automation applications.
