MSN-103.D

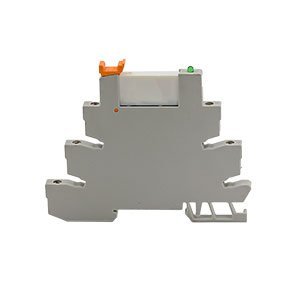

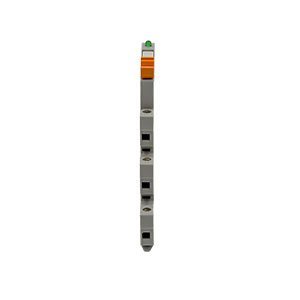

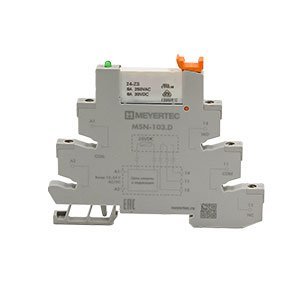

The MSN-103.D is a small, strong, and high-quality relay module. It works well in many electrical control systems. It runs on a 24 VDC coil and has one changeover contact (1CO). This contact can switch currents up to 6A. Although it’s small, the relay is tough and accurate. Its slim 6.2 mm design fits easily into tight spaces. So, it’s perfect for control panels with limited room. You can quickly mount it using a standard DIN rail clip. No special tools are needed.

The relay stands out because of its great insulation. It offers 1000 VAC between contacts and 4000 VAC between the coil and contacts. That keeps your system safe. It also lasts a long time. The relay works up to 10 million times mechanically. Electrically, it performs well for up to 30,000 cycles. This makes it a smart and reliable choice. Plus, it includes an LED light. This shows you the relay’s status right away. So, you can troubleshoot faster.

The contact is made from silver-nickel (AgNi). This gives good conductivity and a long life. Even better, the switching speed is fast. It turns on in just 7 ms and off in 15 ms. With all these strong features, this relay is built for performance and durability.

MSN-103.D Product Features

• Coil voltage: 24 VDC
• Coil power consumption: 0.18 W
• Switching capacity: 6 A at ~250 VAC
• Contact type: 1 CO (single changeover)
• Contact material: Silver-nickel (AgNi)
• Mechanical life: 10 million operations
• Electrical life: 30,000 operations
• Contact-to-contact insulation: 1000 VAC
• Coil-to-contact insulation: 4000 VAC
• On-time (nominal voltage): 7 ms
• Off-time (nominal voltage): 15 ms
• Operating temperature: -40°C to +70°C
• Humidity tolerance: 5% to 85% (non-condensing)
• LED indicator for operational status
• Housing width: 6.2 mm
• Height: 96.2 mm
• Depth: 78.9 mm
• DIN rail mounting (standard clip-on)
• Compact and space-saving design
• High switching reliability
• Fast response time
• Plug-in socket included
• RoHS compliant
• Vibration resistant
• Maintenance-free operation
• Interchangeable with other relay types

Areas of Application

• Industrial control panels
• Power distribution systems
• Automation and process control
• HVAC systems
• Railway signaling
• Renewable energy systems
• Building management systems
• Traffic control equipment
• Alarm and security systems
• Elevator control units
• Pump and motor control
• Instrumentation and testing devices

The MSN-103.D also handles tough conditions. It works in very cold or hot temperatures, from -40°C to +70°C. It can also handle high humidity—up to 85%—without damage. That’s why it works well both indoors and outdoors.
