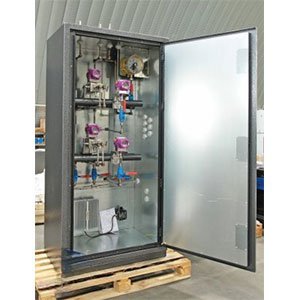

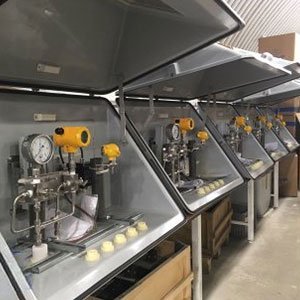

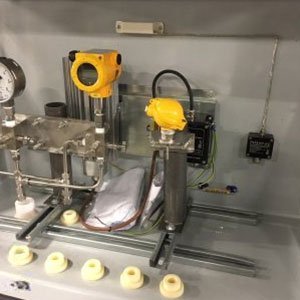

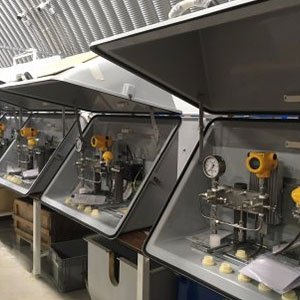

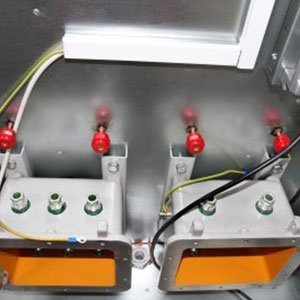

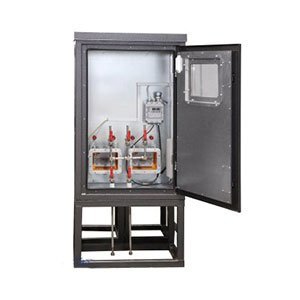

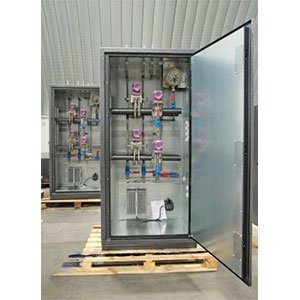

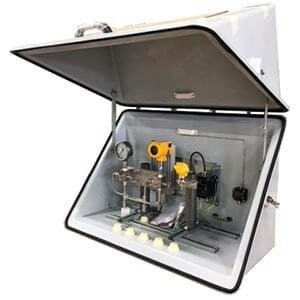

Enclosures complete with equipment (ready-to-mount)

Enclosures complete with equipment (ready-to-mount) are made for tough environments. You can install them directly in places with explosions or chemical hazards. They perform well in extreme temperatures from –60 °C to +70 °C.

By default, they meet IP54 protection. However, you can upgrade them to IP65 or IP66 for stronger protection. They also resist oil, chemicals, UV rays, dust, and bad weather. Plus, their antistatic surface helps stop static buildup, making them safer to use.

NPO RIZUR gives you four package options. The Basic set includes the enclosure with all separate parts. You get mounting parts, heaters, control units, a lamp, a junction box, cable and tube glands, blind flanges, bolts, washers, and nuts.
Next, the Standard set adds pre-installed heaters and fittings based on your drawings.
Then, the System set gives you more. It includes valves, fittings, impulse tubes, and pre-insulated bundles.

Also, the Complete set comes fully assembled. It’s ready to use and includes all measuring and control devices you ask for. These enclosures come in many styles and sizes. You can choose one-door, two-door, split, or modular versions. Each enclosure has a strong body. It’s made from polyester resin reinforced with glass.

Inside and outside walls are separated by a thick layer of polyurethane foam. If needed, you can add an extra K FLEX ALU insulation layer. The standard color is light grey (RAL 7035), but other RAL colors are available if you prefer.

Enclosures complete with equipment (ready-to-mount) Product Features

• Operating temperature: –60 °C to +70 °C (up to +85 °C optional)
• Material: reinforced fiberglass or metal
• Body color: RAL 7035 (custom colors on request)
• Ingress protection: IP54 (IP65 and IP66 optional)
• Antistatic surface
• UV resistant
• Oil and chemical resistant
• Weather and dustproof
• Multi-layer wall construction
• Polyurethane-foam insulation
• Optional K FLEX ALU insulation
• Four set options: Basic, Standard, System, Complete
• Complete set includes ready-to-use metering stations
• Multiple door configurations available
• One-door, two-door, split, modular designs
• Pre-installed heaters and fittings (Standard set and up)
• Equipment: lamps, junction boxes, valves, tubes, flanges, control devices
• Gland and bolt kits included
• Explosion-proof variants available
• Easy installation with guidance
• Fully customizable on request
• Manufactured to customer specification

Areas of Applications

• Oil and gas
• Chemical plants
• Power stations
• Water treatment
• Food industry
• Mining sites
• Telecommunications
• Marine and offshore
• Rail and transport
• Energy metering
• Hazardous zones
• Outdoor control systems
• Instrumentation panels

Installing the Enclosures complete with equipment (ready-to-mount) is simple. You can do it yourself or use an installation team. Each product comes with detailed drawings and specs to help guide the setup.
